Cassin
The roots of this technical equipment date back to 1935 when Riccardo Cassin made the first ascent of the north face of the Cima Ovest di Lavaredo (now rated 5.11d). He established his innovative climbing company down valley from C.A.M.P. in 1952. C.A.M.P. purchased the CASSIN brand in 1997 and honors Riccardo’s memory by stamping his name on some of the most technical products in the line including Technical Ice Axes & Crampons, Big Wall/Aid Climbing gear, a selection of Harnesses, and Bouldering gear. Other select products with an established history under the CASSIN brand also carry his name.
Description
The X-Dream combines two tools in one – a fully optimized tool for technical ice and an aggressive
dry tooling machine. This amazing ice axe not only features three different T rated picks for various terrain, but it also incorporates a patented adjustment system in the ergonomic handle to fine tune the swing and torque even further. A quick turn of the Allen bolt above the grip allows the tool to be switched between Dry and Ice positions by changing the angle of the handle in relation to the angle of the pick. In the Dry position, the handle kicks upward for a more down and out pull. The Ice position drops the handle for a more natural swing. Climbers can further refine the X-Dream with micro-adjustable trigger finger ledges (choose from two inserts – the X-Finger Small or the X-Finger Large – that can be flipped over to adjust the position) and the X-Rest insert which adjusts the overall height of the handle. All three picks feature the refined beak and tooth configuration CASSIN tools are known for. They are designed to provide solid sticks with minimal penetration making them the perfect choice for brittle ice and technical mixed terrain. The Ice pick brings the tip 6 mm closer to the handle for performance similar to the popular X-All Mountain tool. It also features a small hammer that adds the perfect amount of head weight for thin and brittle ice. The Race pick features a sharp beak for grappling with rock along with more aggressive teeth both on the underside and topside of the pick. The Mixed pick is a blend between the two with similar angles to the Ice pick but only a small hammer plate and teeth reaching further down the shaft like the Race pick.
Details
•
Hyper light, perfectly balanced, fully featured tool for technical dry, mixed and ice climbing
•
Ergonomic handle with patented adjustment system to change between Dry and Ice angles
•
The handle is constructed from extreme cold resistant polymer laid over the hot-forged aluminum alloy spine
•
3 different picks (Mixte supplied as standard, Ice and Race can be purchased separately) provide further refinement for different styles of climbing
•
Micro-adjustable trigger finger ledges and X-Rest insert adjust the overall height and size of the handle
•
X-Trigger pommel attaches to the shaft for a third ledge
•
X-Grip 2 included
Weight
600g
Srce: CAMP
My opinion
(Note: the Cassin X-dreams were provided to me by the K2 profshop for testing purposes. This didn’t influence my opinion in any way!)
Picks
All the picks available for the X-dream are T-rated. This is very confidence inspiring, because they look pretty narrow and there are some holes cut out for weight reduction. It is also mandatory for mixed climbing, dry tooling and competitions to reduce the chance of bending or even breaking a pick while torqueing the tools.
I also noticed that the picks seemed to hold there edge very well.
Ice pick
I really liked the way the picks stick from the first hit, without shattering too much ice. They really
cut the ice like a knife through butter. This is probably because of the tapering of the picks. The downside of this is that they can sink down deep into soft ice, what makes them very hard to remove. Especially when the big spike on the underside of the pick gets into the ice or when the serrations on the head contact an ice curtain.
I’m not sure why they are in place on an ice pick anyway. I suppose, the big spike secures the blade while hooking between icicles and behind pillars and the serrations on the head are for torqueing the axe. But then again, I’ve never experienced the need for anything like that while ice climbing. In my opinion, those extra teeth are more useful for dry tooling or mixed climbing.
I also used this pick for some dry tooling and I was very pleased with the first tooth, who is a little downturned and far enough from the second tooth. It felt very secure, even while matching hands and pivoting the tools. I found the serrations on the head of the tool very useful, while torqueing the tools. The big spike on the underside came in handy while hooking over big holds. It felt more secure.
Although I’ve never used them for hammering a piton I found the hammer very useful, because it places some more weight into the head of the axe, what makes for a better swing. But I think there is still room for improvement… I’d suggest Cassin to take off the hammer and to put the same weight in front of the head for less vibration of the pick and an even better swing with less moment force when the pick hits the ice. This will reduce the chance of the pick bouncing off while hitting a bulge of hard ice.
In addition to the extra weight the hammer brings to the head, it also makes it possible to use the tool into the alpine.
Mixte pick
Note: I have not used this pick in the field, but I’ll compare it with the ice pick by its few differences.
The mixed pick is similar to the ice pick, but there are a few adaptations for dry tooling and mixed
climbing. First, the serrations on the head reach further down the head. This makes the axe even better for torqueing, but worse for ice climbing.
Second, they have more cut-outs and no real hammer for weight reduction. Since the pick is going to be used more on rock, there is less need for extra weight in the head. The hammer is removed, but there is still some metal protruding at the back of the head. I recon it is (almost) impossible to hammer a piton with it, without smashing the head. Maybe it is more useful to pommel one axe into an ice- or frozen turf-filled crack with the other one.
Third, the pick comes down lower towards the shaft for better hooking around or over holds.
 |
| Comparison between the ice pick (bloted on the tool) and the mixed pick |
Comp pick
Note: I have not used this pick in the field.
This pick is the most radical in the X-dream arsenal. The serrations underneath are bigger and more aggressively angled towards the back for even more secure pick placements, the tip is even more downturned, the hammer is totally removed, the head is even more cut-out and the teeth on top are almost running to the tip of the pick! Great blade for extreme dry-tooling, but not very useful on pure ice.
Shaft
Although I haven’t noticed it while ice climbing the shaft flexes a lot even compared to the Nomic, which already has some flex in its shaft. It actually felt pretty weird while dry tooling and it might affect the performance of the tool slightly, especially on very tiny edges.
Handle
 |

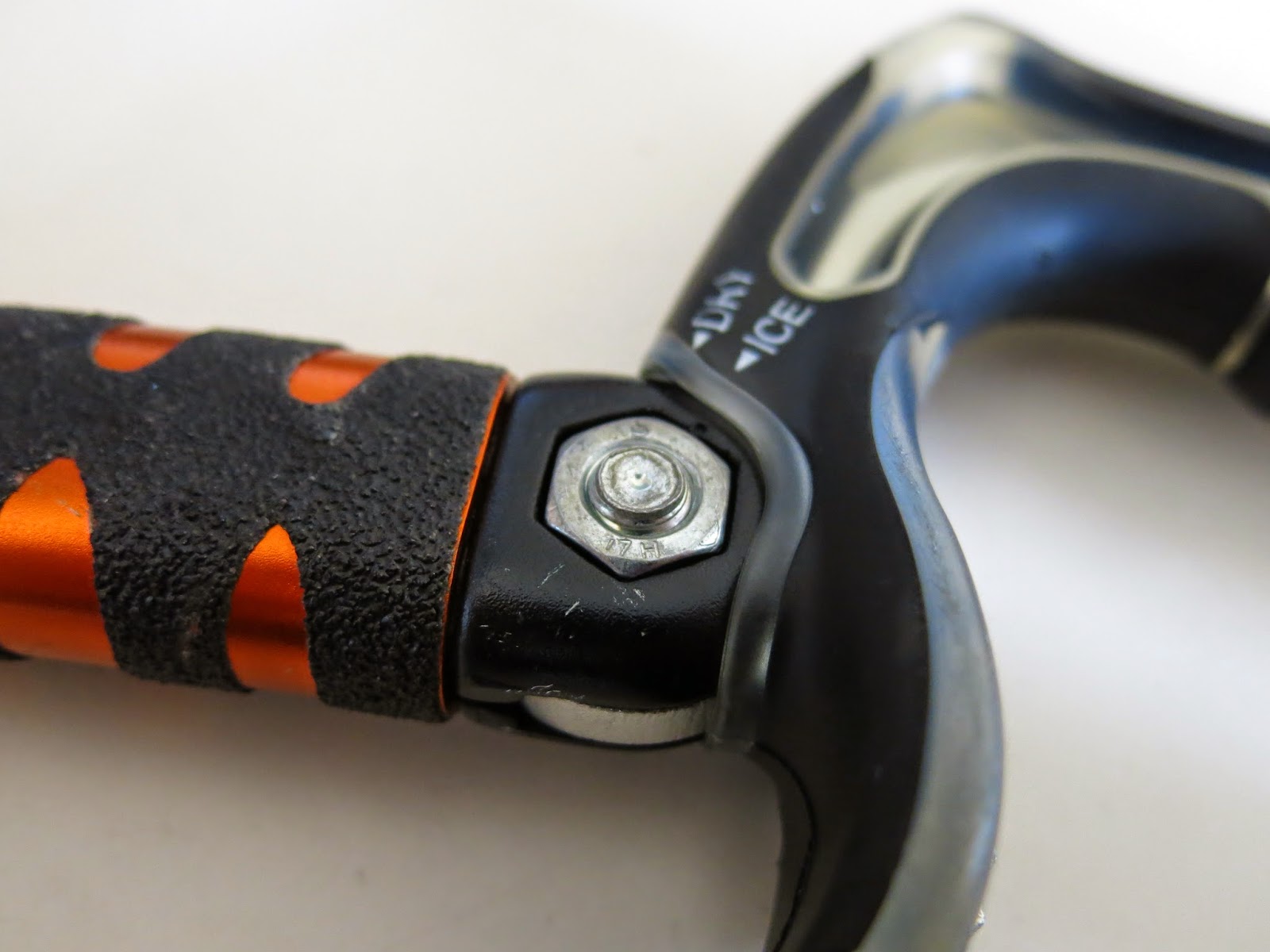

| The handle in the ice-setting |
In the ice-setting, the swing of the tool felt very natural. It solves the problem of the Ergo tools, whose handle is almost parallel to its pick what makes it awkward to swing in ice. The swing felt more like a Nomic, but with a lower center of gravity. For dry-tooling on some vertical to slight overhanging walls, I’d suggest you use the handle in the ice setting, because there is almost no pick shift, while matching with the second grip.
In the dry-setting the handle became almost parallel to the pick, more like the Ergo’s. This makes the X-dream a great tool for overhanging dry-tooling. It makes it easier to hold onto the tool longer, because it straightens the wrist. The trade-off for this is a greater pick-shift while matching hands, because of the greater difference in
 |
Notice the full-strength hole in the handle and
the serrations underneath the handle. |
angle between the first and the second grip.
Overall the handle is very comfy and it is possible to customize it with a variety of different accessories. It provokes a comfortable, relaxed hand position.
The handle is also equipped with a serrated pommel and second hand rest. This protects the handle from getting smashed-up against the ice or rock. If you like to use the tool into the alpine, the serrations are too small to give you any grip on snow, but CAMP announced a replacement handle for fall 2015 with a big spike to satisfy the alpine climbers. If you are an alpine climber or if you like some multi-pitch ice climbing, you may want a place to clip your tethers to… It is possible to clip a BD spinner leash through the hole in the handle, but it will be more comfy to put some cord trough to clip them to. There will be a hole into the spike of the new handles, so you can use them for clipping your leashes as well, I guess.
So, all in all it’s a great handle, but I noticed something disturbing! On one of the axes, the bolt that connects the handle to the shaft loosened very easily even after I retightened the bolt. This created some movement between the handle and the rest of the axe. Although it was not a safety issue by any means, it felt not very reassuring while climbing.
The second handle felt comfortable. The pinky-rest is the upper part of the first handle and Cassin added some skateboard-style grip-tape and it did the job.
The third grip consists of a removable pinky-rest and it is clamped around the shaft. I found it particularly useful in ice and snow. In ice because it makes it easier to reach higher or to match hands in a traverse. In snow, I noticed that this grip kept my hands out of the snow, while Ueli Stecking some firn snow. However the downside of the third hand rest is that you can easily hit it if you take a swing over a bulge. It happened to me a few times and it turned sideways once. I also found the hand rest less useful while dry-tooling, because it creates a lot of pick shift, so use it on good holds only!
 |
| Handle customisation accessories |
 |

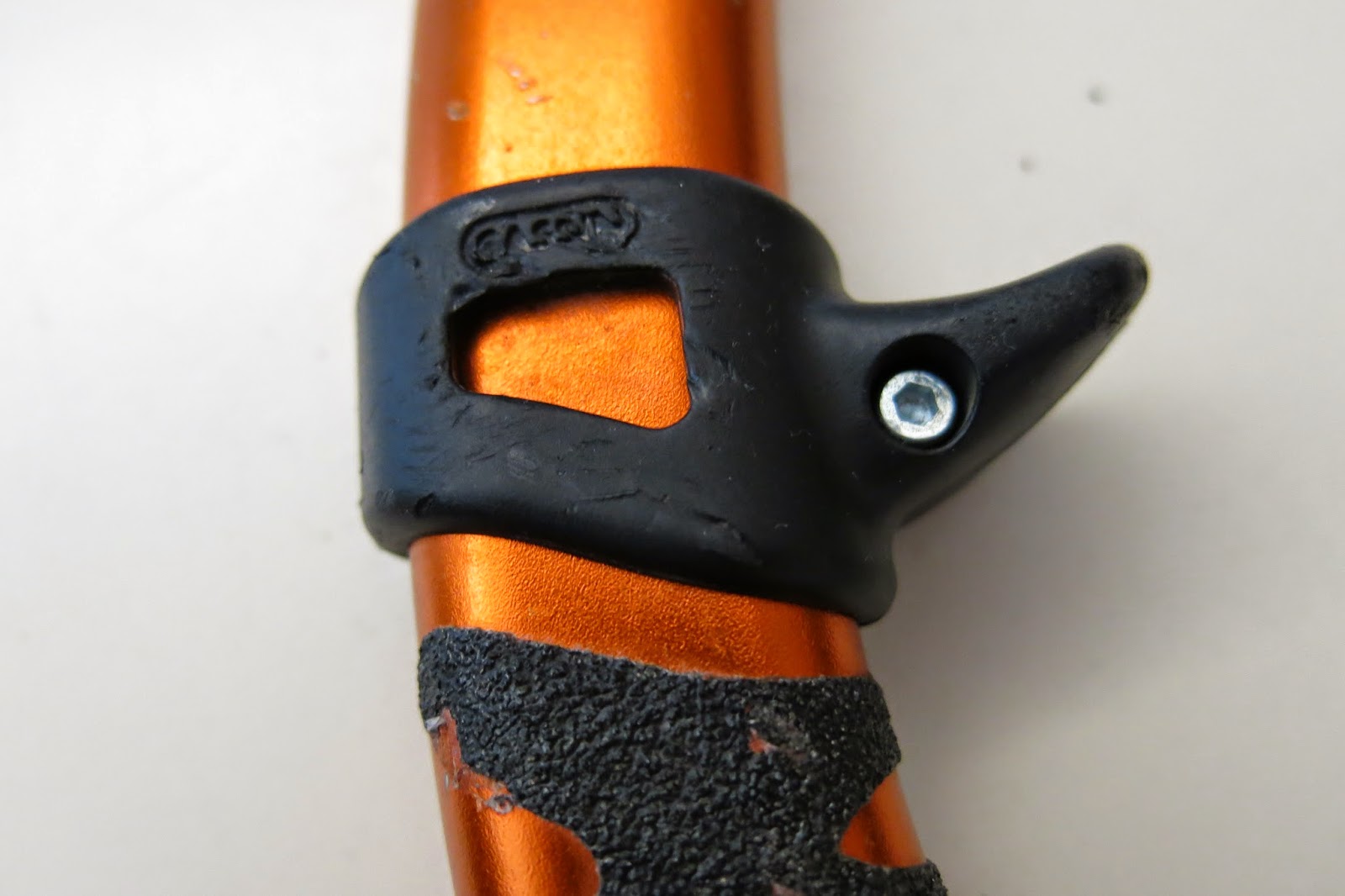

| Removable hand-rest. Just below, you can see a part from the grip-tape. |
Conclusion
The X-dream is a great all-round tool for steep ice, mixed climbing and dry-tooling. It bridges the gap between pure dry-tooling axes like the Ergo and the more ice-oriented tools like the Nomic. It is in a lot of aspects a better ice tool as the Nomic, one of its biggest competitors, but it has its flaws. I’d like a stiffer shaft, a clean ice pick without serrations on the head, without the big tooth and a more secure way to attach the handle.
Positive
•
Great swing and sticks
•
Modular handle
•
Multi-functional
•
Lightweight
Negative
•
Flexible shaft
•
Pick can get stuck into the ice
•
Handle-shaft connection can loosen
.jpg) |
| Ice climbing in Rjukan, Norway ©Steven De Decker |
